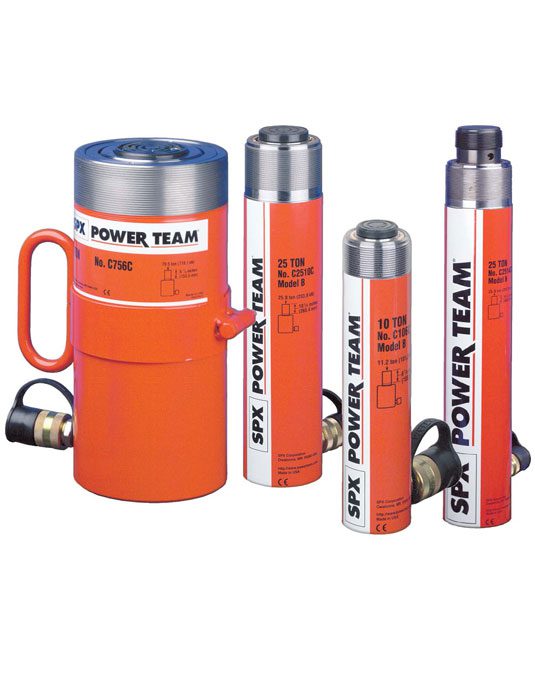

Hydraulic Cylinders C Series 5 – 100 Tons

Call for best price

(08) 8351 6705

South Australia map icon

Ask about our South Australian Lowest Price Guarantee on all products and servicing.

servicing icon

Servicing Peace of Mind

We offer servicing on this product.
Click here to find out more about our servicing.

Technical Specifications



Single-acting, spring-return. Rugged and high quality general purpose cylinder used for lifting and pressing. Rugged, high quality cylinder used for lifting and pressing. Aluminium bronze bearing reduces wear caused by off-centre loads. Maximum sized springs speed piston return and increase spring life. Solid steel cylinder body for durability. Chrome plated piston rod resists wear and corrosion. Wide range of accessories available to thread onto piston rod, collar, or onto cylinder base. Base mounting holes standard on 5 through 55 ton cylinders; optional on 75 and 100 ton cylinders. A 3/8" NPTF female half coupler is standard.
