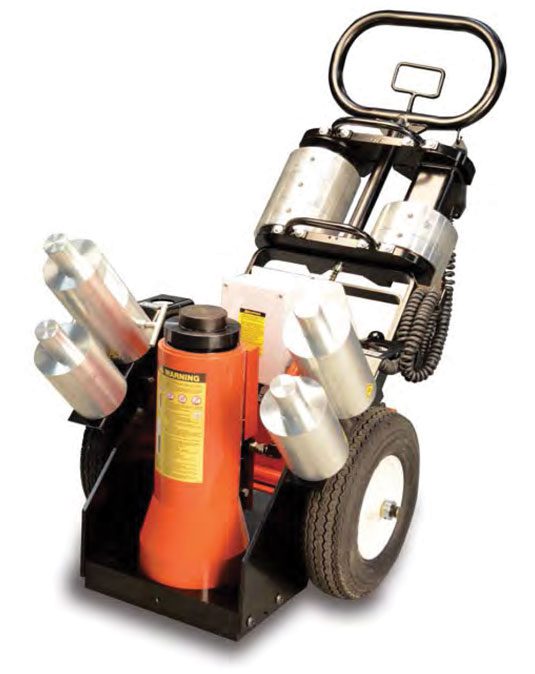

Portable High Tonnage Jack

Call for best price

(08) 8351 6705

South Australia map icon

Ask about our South Australian Lowest Price Guarantee on all products and servicing.

servicing icon

Servicing Peace of Mind

We offer servicing on this product.
Click here to find out more about our servicing.

Technical Specifications

PHTJ

Features

Modular design - pump and cart separate from cylinder and base. Three tonnage capacity options - 55, 100, and 150 tons. Three collapsed height options - 26", 33", and 45". Two standard power options - air (PA55) and electric (PE55). Two control options - remote motor control and remote valve/motor control. Accessory options - 6 5/8" extension, load-holding rings. Select the collapsed height to fit your most frequent application - add jacking modules to suit your needs. Remote operation for maximum operator safety and control - choose "motor only" or "motor and valve" control in the hand. Easy to maneuver - large tires and small "footprint" make it easy to scoot into the tightest quarters, then locate the exact lifting position. Adjustable, heavy-duty handle - makes this jack easy to move, position under vehicles. Can also be used to transport jack on site with a forklift. Load-holding rings (optional) - provide full rated mechanical load-holding capability. Shielded and sheltered hydraulic lines - for safer, longer, trouble-free service. Cylinder extension (optional) - adds more versatility by extending your jack's reach. Low-temperature oil (optional) - provides smooth, reliable operation in the coldest climate conditions. Modular design - allows you to change lifting modules to suit your tonnage or height requirements. Use the pump module as a portable power station for your other double-acting cylinders (10,000 psi). Exclusive load-control system - provides positive, chatter-free control when lowering the load. Pump & Cart Modules Pump and cart modules contain hydraulic pump, cart, remote control and all hoses and fittings required to connect to a jack module. Contact factory on folding handle cart option.
