Wheel Dolly

Call for best price

(08) 8351 6705

South Australia map icon

Ask about our South Australian Lowest Price Guarantee on all products and servicing.

servicing icon

Servicing Peace of Mind

We offer servicing on this product.
Click here to find out more about our servicing.

Technical Specifications

  • Working Load Limit 800kg
  • Maximum Lift 500mm
  • Lifting arms lowered height 115mm
  • Lifting arms raised height 615mm
  • Width of roller arms closed 440mm
  • Width of roller arms open 680mm
  • Overall Width 980mm
  • Overall Depth 1060mm
  • Overall Height 1070mm
  • Net weight 101kg

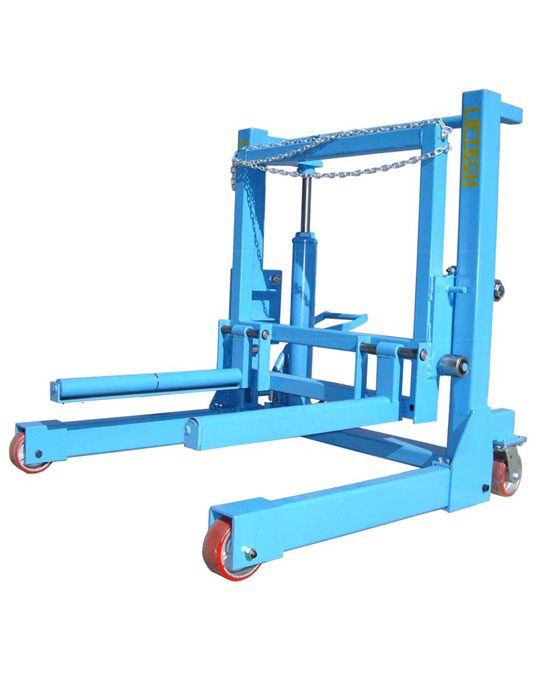

The LIFTECH Wheel Dolly makes the removal and refitting of dual or super single wheels effortless.
  • Heavy Duty wide frame & lifting carriage
  • Offset hydraulic unit allows working access to wheels during removal & refit
  • Hydraulic unit has foot pump & foot release for hands free operation
  • Extra lifting height enables wheels to be placed on balancers or other machines
  • Polyamide coated fixed front wheels & caster rear wheels for better maneuverability
  • 3 position adjustment on lifting arms
  • Angle iron reinforced lifting arms
  • 4 rollers per side for smoother wheel rotations
  • Safety chain for securing load
  • 2 Stud & Nut trays
