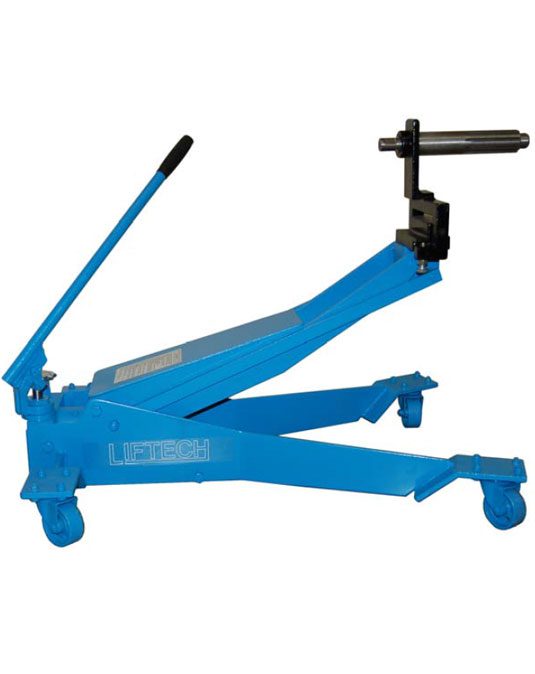

Clutch Jack

Call for best price

(08) 8351 6705

South Australia map icon

Ask about our South Australian Lowest Price Guarantee on all products and servicing.

servicing icon

Servicing Peace of Mind

We offer servicing on this product.
Click here to find out more about our servicing.

Technical Specifications

  • Working Load Limit 150kg
  • Closed Height 280mm
  • Lift 680mm
  • Maximum Height 960mm
  • Frame Width 620mm
  • Frame Length 940mm
  • Frame Height 280mm
  • Net Weight 74kg


Specifically designed to lift in and out clutches & flywheels without the physical danger of carrying out the job without mechanical assistance. Travel the jack to the job in the closed position and only raise the hydraulics when the jack is positioned to fit the clutch. Locate the shaft into the spigot bearing and align and bolt the clutch.
  • Special T bracket for R&R of all size flywheels.
  • R&R of a clutch kits is made easy by the inclusion of 3 special input shafts in the most popular sizes of 1 3/4" and 2" diameter 10 splines and 2" diameter 14 spline to suit 2250ft/lb road ranger gearbox, fitted to Mack, Western Star, Kenworth & Sterling vehicles
  • Hydraulically operated
  • 3600 rotation handle and easy pump stroke.
  • Loading of the jack is made simple by laying the input shaft back to vertical.
